H1 and H3 neighbor-joining gene trees from nucleotide sequence data in several bivalve mollusks species in comparison with other groups of organisms

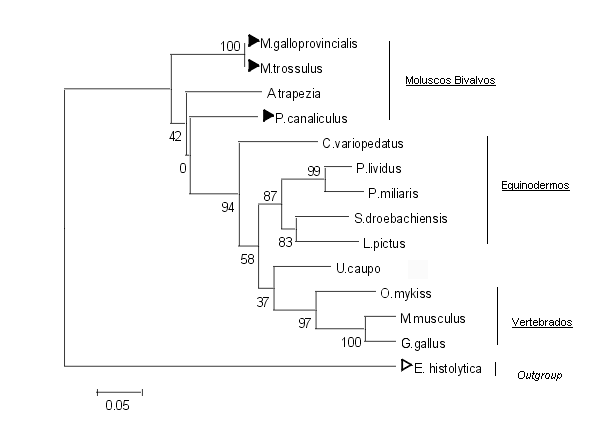

H1 gene tree following the "neighbor-joining" reconstruction method, from Jukes & Cantor distance matrix data. Bootstrap values are shown in nodes.Black arrows indicate organisms in which H1 was sequenced in our work. White arrow indicates the ougroup. Sequences without arrows were extracted from GenBank.Scale bar indicates substitutions per site.

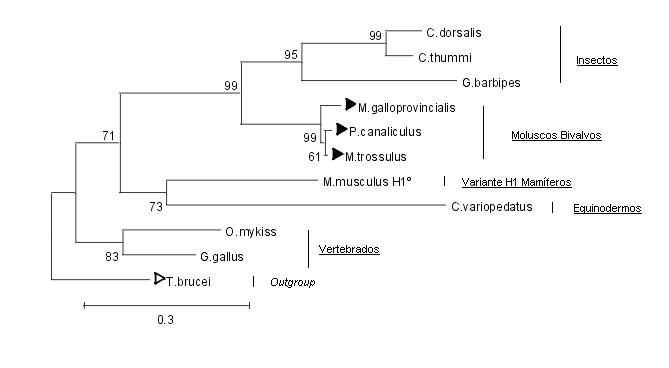

H3 gene tree. Methods are the same as in H1 tree.
